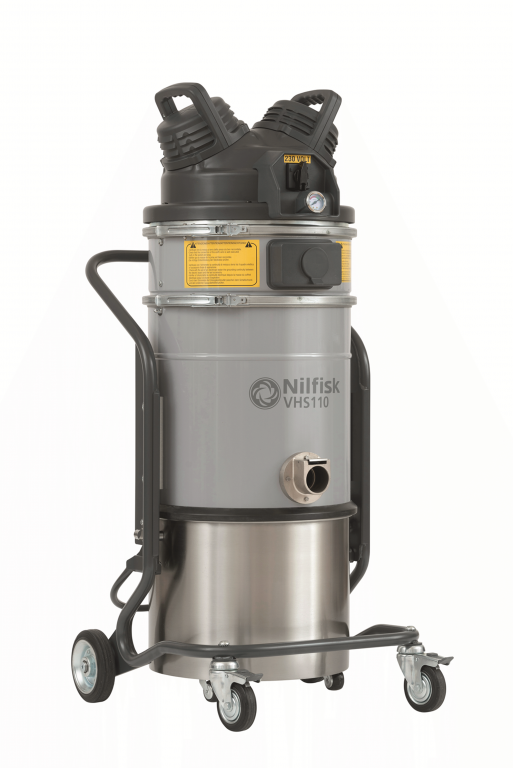

Nilfisk VHS 110 Z22 Combustible Dust Vacuum

The single phase industrial vacuum cleaner for use in Atex Z22 locations.

The VHS110 Z22 is the innovative single phase industrial vacuum cleaner suitable for Atex Z22 locations. Thanks to the brushless motor, this machine ensures high performance. Moreover it needs less maintenance and is suitable for continuous use. The innovative PullClean system effectively cleans the antistatic star filter while the vacuum is running, without the need to stop working.The optional HEPA14/ULPA15 upstream filter is the perfect choice when collecting fine dusts. The modular design makes it extremely easy to service and upgrade in the field. With its 400 mm diameter​ the VHS110 ATEX is a compact in order to be easily used everywhere, but has a good capacity thanks to its 37 litre removable container. The simple design makes it easy to clean and sanitise.



• Single Phase Atex Z22
• High performance
• HEPA14/ULPA15 absolute filtration for very fine dust
• 37L stainless steel removable container
• Stainless steel version
• Compact dimensions
• Easy to use
• Easy to service

Specifications
Voltage (V)                                                     230
Frequency (Hz)                                              50/60
Insulation class                                               I
IP protection class                                          64
Rated power (kW)                                          1.1
Airflow without hose (m³/h - l/m)                     216 - 3600
Max. vacuum (kPa - mbar)                              22 - 220
Sound pressure level (dB(A))                          76
Main filter type                                                ANTISTATIC STAR FILTER L-CLASS
Main filter area (cm²)                                      10000
Upstream HEPA H14 filter (if present) (cm²)   11000
Container capacity (l)                                     37
Inlet (mm)                                                      50
Weight (kg)                                                    43
Length x width x height (mm)                         560x570x1240
Stainless steel dust container                        Included
Vacuum meter                                               Included
HEPA (H14) upstream filtration                      Included
Earth connection                                           Included
ATEX category                                              Included
M class AntiStatic filter                                  Included
Conductive wheels                                        Included
Filter cleaning system                                   Included
Plastic bag system                                        Included
